Supervised ML Algorithms Case Study

Comparing three classifiers across three binary datasets.

Project Overview

I compared Random Forest, Support Vector Machine, and Logistic Regression on three binary datasets from the UCI Machine Learning Repository. The aim was to see how each model behaved across data splits, tuning, and evaluation metrics.

Algorithms were evaluated using different train-test splits (20/80, 50/50, 80/20)
Parameter tuning was done with 10-fold cross-validation
Performance was measured by training/testing accuracy and log loss
Three datasets were used: Credit Approval, Tic-Tac-Toe, and Breast Cancer Wisconsin

The Algorithms

Random Forest

Tree-based algorithm that builds multiple decision trees on random data subsets and combines their predictions.

Handles non-linear relationships well
Shows feature importance
Reduces overfitting

Support Vector Machine

Finds the optimal boundary that separates classes with maximum margin.

Works well in high dimensions
Handles complex relationships
Effective with limited samples

Logistic Regression

Models probability of class membership using a logistic function applied to linear feature combinations.

Simpler implementation
Faster training time
Easily interpretable results

Results by Dataset

All three algorithms performed well across datasets, with high accuracy and relatively low log loss values. Below are the best test accuracies achieved by each algorithm:

Credit Approval

Random Forest
97.8%
SVM
96.4%
Logistic Regression
95.1%

Tic-Tac-Toe

Random Forest
96.2%
SVM
98.5%
Logistic Regression
98.5%

Breast Cancer

Random Forest
97.8%
SVM
96.4%
Logistic Regression
97.4%

In addition to accuracy, log loss was measured as an indicator of model confidence. SVM consistently achieved the lowest log loss values, demonstrating greater confidence in its predictions.

Key Findings

By a narrow margin, SVM demonstrated the most consistent performance across all datasets, showing the best balance between training/testing accuracies and log loss values. However, all three algorithms proved effective, with their relative strengths becoming apparent in different contexts.

Logistic Regression offers excellent performance with the benefit of simplicity and fast runtime, making it an excellent choice for binary classification tasks, especially those with linear relationships. Random Forest excels at identifying non-linear features and reducing overfitting, while SVM shows particular strength in maintaining balanced performance across varied datasets.

Conclusion

SVM had a small overall edge, but no model won every dataset. Dataset shape, interpretability, and compute constraints mattered more than choosing a single default algorithm.

Tuning and cross-validation mattered across all three methods. Each passed 95% accuracy in its best configuration, but the tradeoffs were different.

Full Research Paper

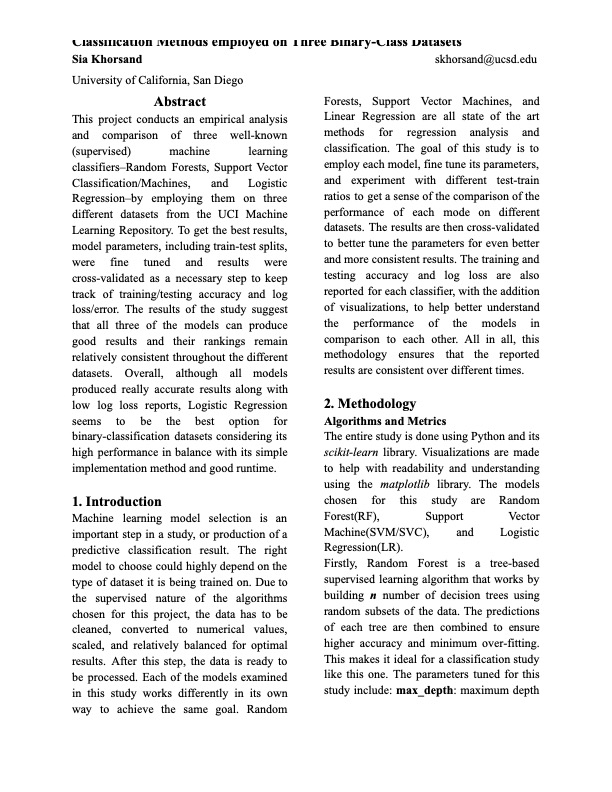

First page of research paper
Preview of first page
Download Full Paper (PDF)

"A Comparative Analysis of Three Supervised Machine Learning Classification Methods employed on Three Binary-Class Datasets"

Explore the Code

View on GitHub
